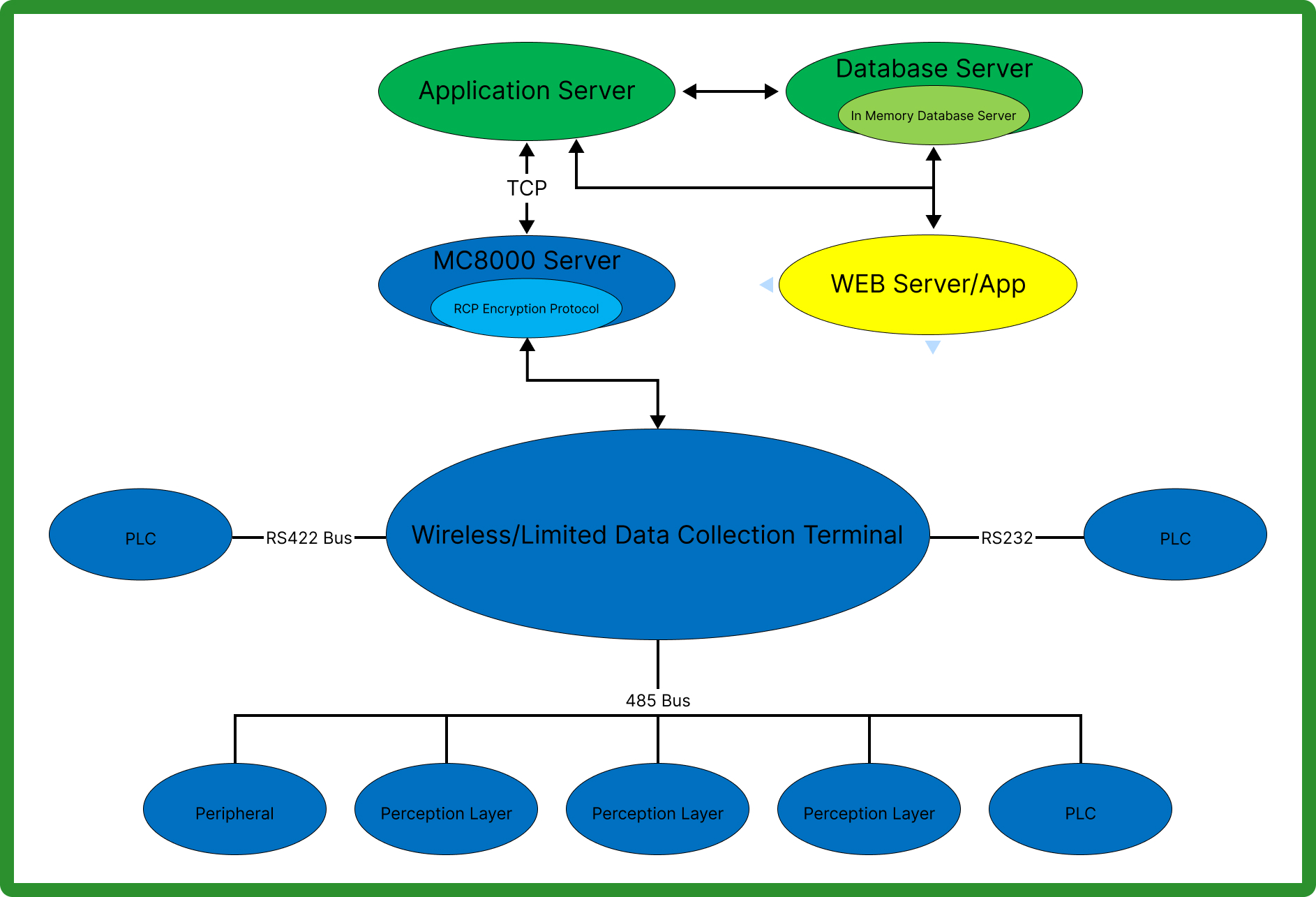

System Architecture Diagram

Figure 1-1

Function

• Establish a direct communication connection between the cold chain data collection terminal and the application server;
• Receive data from the cold chain data collection terminal and forward it to the application server;
• Receive control commands from the application server and forward them to the cold chain data collection terminal;
• Basic setup and upgrade of cold chain data collection terminal.

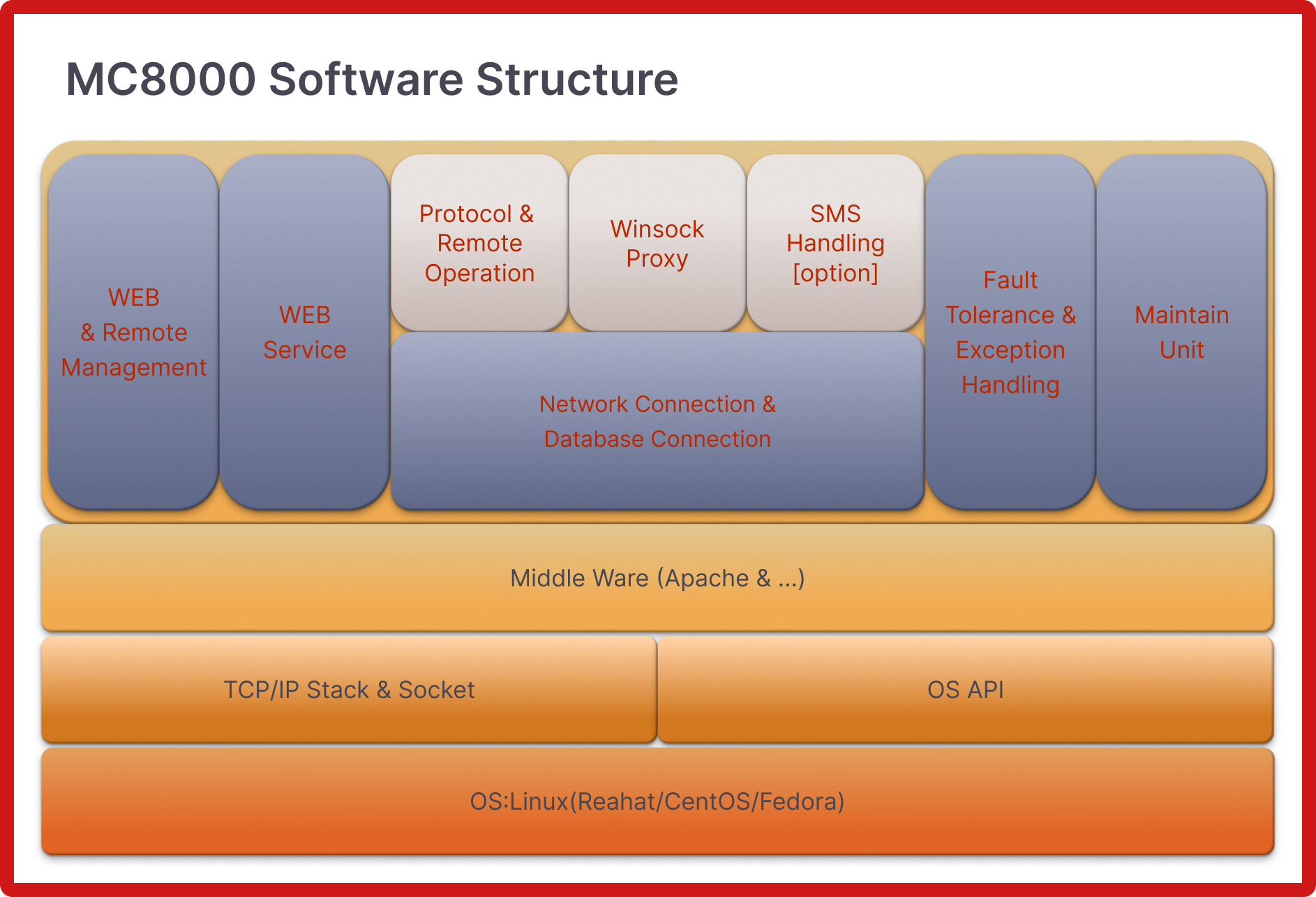

Software architecture diagram

Figure 1-2

• Receive data from communication servers, analyze it, and store it in a structured manner;
• Receive and analyze WEB application data instructions, and send them to the cold chain data collection terminal through the communication server.

Database server

• The project is deployed to Alibaba Cloud Private Cloud using MySql database;
• Transfer to Oracle database according to requirements in the later stage.
• Structured storage data;
• Automatically process some data.
